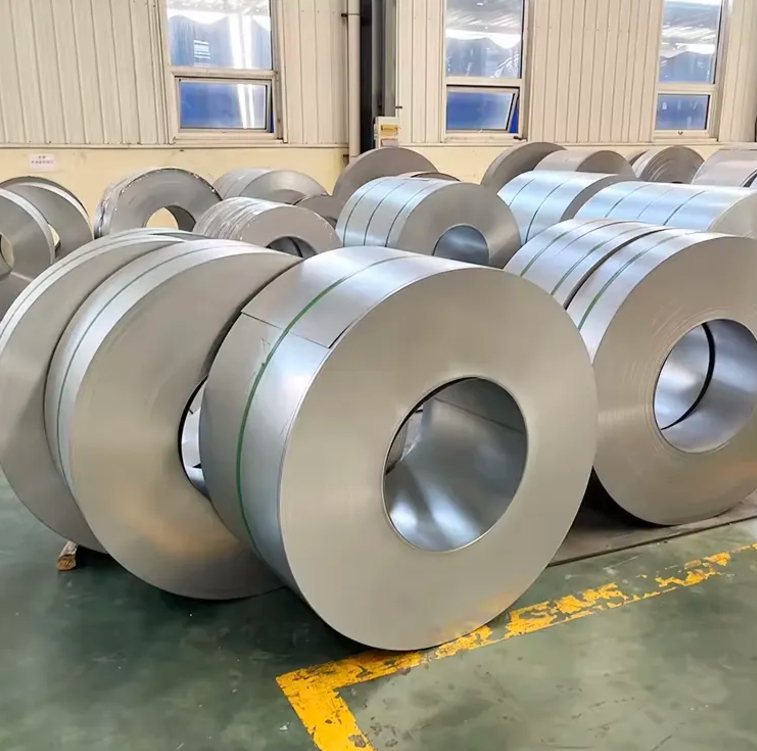

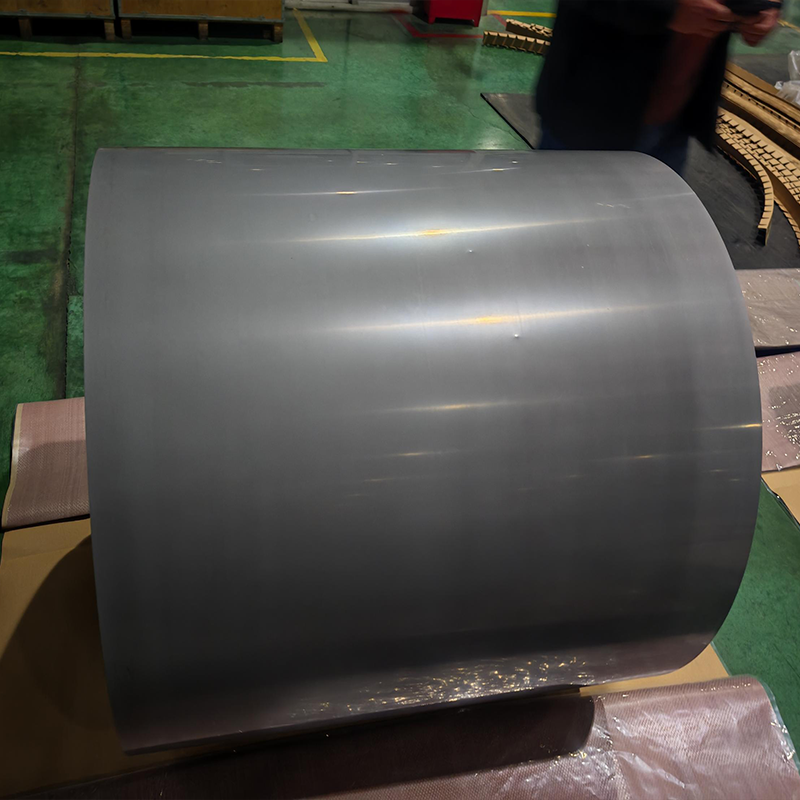

CRGO silicon steel

Common grades（Baosteel）：B18R065/B20R065/B23R075/B23R080/B20R070B23R085

Common grades(India)：HP75D/HP80D/50C800

Common sizes：0.23*1200mm、0.27*1200mm

Description

Type	Oriented Silicon Steel
Tolerance	±1%
Grade	High permeability
Standard	AISI, ASTM, BS, DIN, GB, JIS, EN
Place of Origin	Shandong, China
Delivery Time	31-45 days
Technique	Cold Rolled
Thickness	0.18 – 0.35 mm
Surface Treatment	Annealed
Shape	EI Lamination
Model Number	27Q120
Processing Service	Bending, Welding, Decoiling, Cutting, Punching
Shape	Flat Steel Plate
Technique	Cold Rolled
Application	Transformer Core
Steel shape	Steel Coil Crgos
Standard	B23R080-B27R095
Material	Ferromagnetic Materials
Certificate	ISO9001
MOQ	1 tons

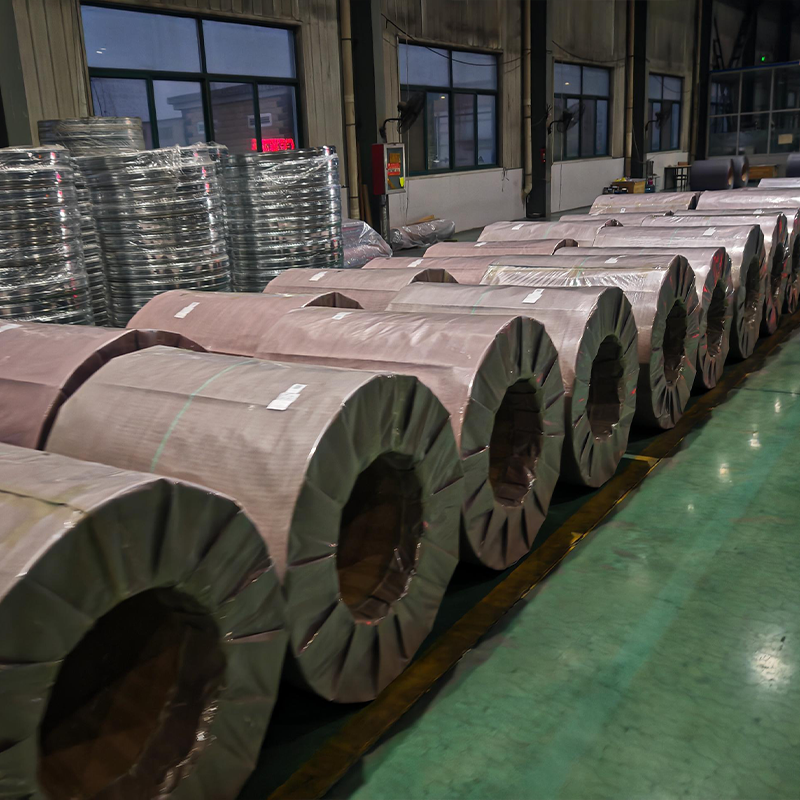

Packing	Standard Shipping Packing
Process	Winding Annealing

产品尺寸 Dimensions of Products

可供产品厚度 Available thickness	可供产品宽度 Available width range	内径 Inside diameter
mm	mm	mm
0.15、0.20	950-1000	508±10
0.30、0.35、0.50、0.70、0.75、0.80、0.85	1000-1250	508±10

尺寸及板形公差 Dimensional and Shape Tolerances

公称厚度 Nominal thickness	公称厚度允许偏差 Nominal thickness tolerance	横向厚度差 Traverse thickness tolerance	宽度允许偏差 Width tolerance	不平度 Flatness	2 m 内镰刀弯 Camber within 2m
mm	mm	mm	mm	%	mm
0.15	±0.012	≤0.010	0~+1.5	≤1.5	≤1.0
0.20	±0.012	≤0.010
0.30	±0.015	≤0.012
0.35	±0.015	≤0.012
0.50	±0.020	≤0.015
0.70	±0.030	≤0.025
0.75	±0.030	≤0.025
0.80	±0.040	≤0.030
0.85	±0.040	≤0.030
